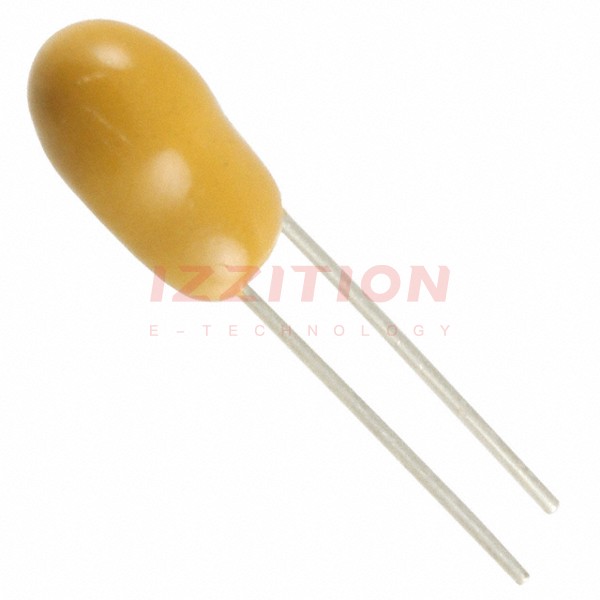

| Part Number | T350H226K025AT | T350H226M025AT | T350H226J025AT | T350H226K025AS |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 22 µF | 22 µF | 22 µF | 22 µF |
| Tolerance | ±10% | ±20% | ±5% | ±10% |
| Voltage - Rated | 25 V | 25 V | 25 V | 25 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 1.5Ohm | - | 1.5Ohm @ 100kHz | 1.5Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.299" Dia (7.60mm) | 0.299" Dia (7.60mm) | 0.299" Dia (7.60mm) | 0.299" Dia (7.60mm) |
| Height - Seated (Max) | 0.402" (10.20mm) | 0.402" (10.20mm) | 0.402" (10.20mm) | 0.402" (10.20mm) |
| Lead Spacing | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Manufacturer Size Code | H | H | H | H |
| Ratings | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
