Please send RFQ , we will respond immediately.

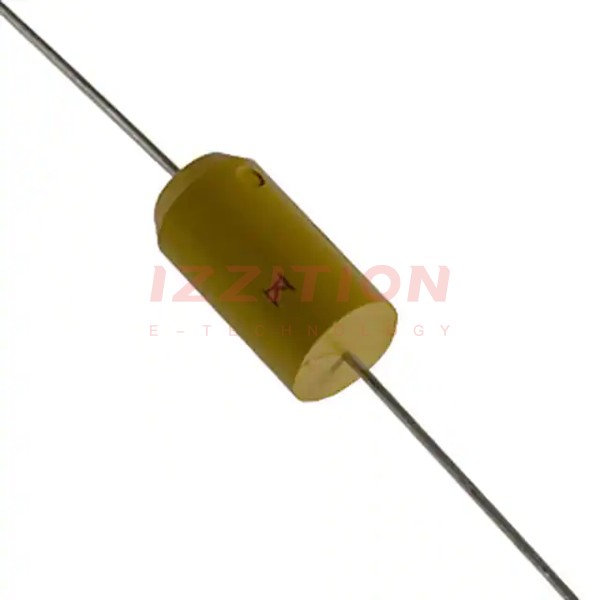

| Part Number | T322E107K010AT | T322E107K015AT | T322E107M010AT | T322E157K010AT | T322E107K010AS |
|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 100 µF | 100 µF | 100 µF | 150 µF | 100 µF |
| Tolerance | ±10% | ±10% | ±20% | ±10% | ±10% |
| Voltage - Rated | 10 V | 15 V | 10 V | 10 V | 10 V |
| Type | Molded | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 1Ohm | 800mOhm | 1Ohm @ 100kHz | 800mOhm | 1Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.280" Dia x 0.530" L (7.11mm x 13.46mm) | 0.280" Dia x 0.530" L (7.11mm x 13.46mm) | 0.280" Dia x 0.280" L (7.11mm x 7.11mm) | 0.280" Dia x 0.530" L (7.11mm x 13.46mm) | 0.280" Dia x 0.530" L (7.11mm x 13.46mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - |
| Manufacturer Size Code | E | E | E | E | E |
| Ratings | - | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - |
