Please send RFQ , we will respond immediately.

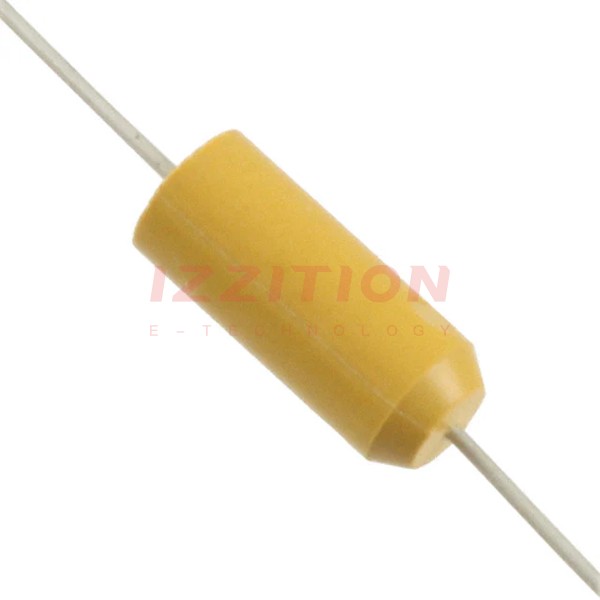

| Part Number | T322D156K020AT | T322D156K025AT | T322D156M020AT | T322D156K020AS |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 15 µF | 15 µF | 15 µF | 15 µF |
| Tolerance | ±10% | ±10% | ±20% | ±10% |
| Voltage - Rated | 20 V | 25 V | 20 V | 20 V |
| Type | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 2.3Ohm | 2Ohm | 2.3Ohm @ 100kHz | 2.3Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.180" Dia x 0.420" L (4.57mm x 10.67mm) | 0.180" Dia x 0.420" L (4.57mm x 10.67mm) | 0.180" Dia x 0.180" L (4.57mm x 4.57mm) | 0.180" Dia x 0.420" L (4.57mm x 10.67mm) |
| Height - Seated (Max) | - | - | - | - |
| Lead Spacing | - | - | - | - |
| Manufacturer Size Code | D | D | D | D |
| Ratings | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
