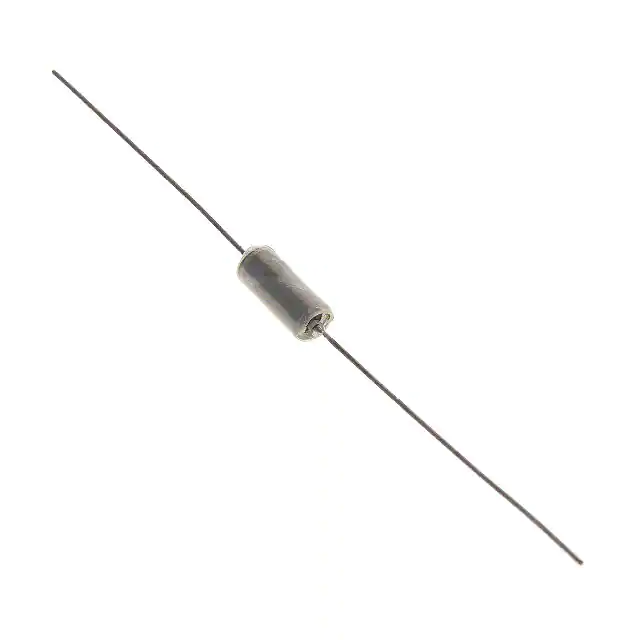

| Part Number | T110D107J020AT | T110D107K020AT | T110D107J020AS |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 100 µF | 100 µF | 100 µF |
| Tolerance | ±5% | ±10% | ±5% |
| Voltage - Rated | 20 V | 20 V | 20 V |
| Type | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed |
| ESR (Equivalent Series Resistance) | 600mOhm @ 100kHz | 600mOhm | 600mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial |
| Size / Dimension | 0.351" Dia x 0.351" L (8.92mm x 8.92mm) | 0.351" Dia x 0.786" L (8.92mm x 19.96mm) | 0.351" Dia x 0.351" L (8.92mm x 8.92mm) |
| Height - Seated (Max) | - | - | - |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | D | D | D |
| Ratings | - | - | - |
| Features | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
