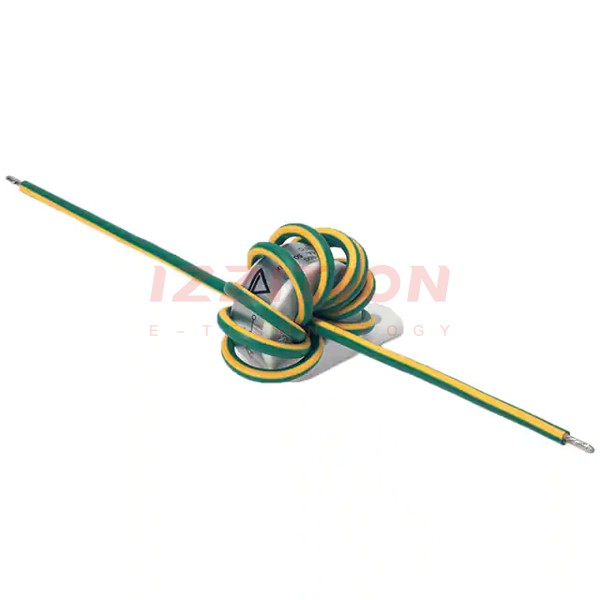

| Part Number | SNG-25A-600 | SNG-25B-600 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) | Manganese Zinc Ferrite (MnZn) |
| Inductance | 600 µH | 600 µH |
| Tolerance | -30%, +50% | -30%, +50% |
| Current Rating (Amps) | - | - |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 20mOhm Max | 20mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C |
| Inductance Frequency - Test | 160 kHz | 160 kHz |
| Features | - | - |
| Mounting Type | User Defined | Chassis Mount |
| Package / Case | Vertical, 2 Wire Leads | Vertical, 2 Wire Leads |
| Supplier Device Package | - | - |
| Size / Dimension | 1.535" Dia (39.00mm) | 1.929" L x 0.945" W (49.00mm x 24.00mm) |
| Height - Seated (Max) | 0.945" (24.00mm) | 1.535" (39.00mm) |
