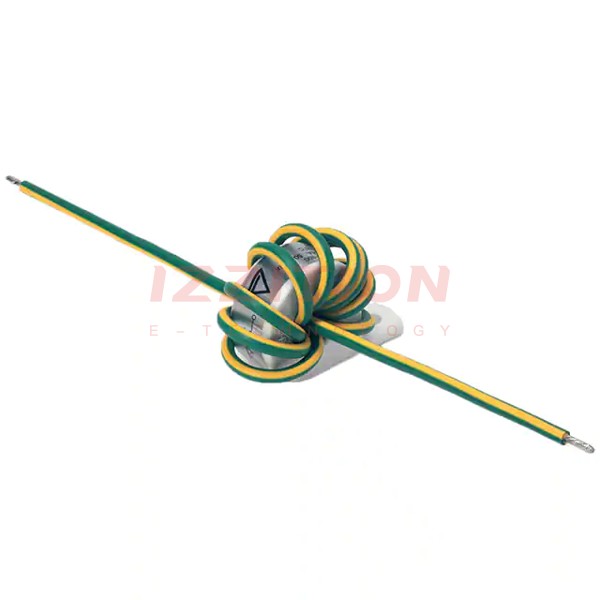

| Part Number | SNG-19DB-014 | SNG-19DA-014 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Nickel Zinc Ferrite (NiZn) | Nickel Zinc Ferrite (NiZn) |
| Inductance | 14 µH | 14 µH |
| Tolerance | -30%, +50% | -30%, +50% |
| Current Rating (Amps) | - | - |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 10mOhm Max | 10mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C |
| Inductance Frequency - Test | 160 kHz | 160 kHz |
| Features | - | - |
| Mounting Type | Chassis Mount | User Defined |
| Package / Case | Vertical, 2 Wire Leads | Vertical, 2 Wire Leads |
| Supplier Device Package | - | - |
| Size / Dimension | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) | 0.787" (20.00mm) |
