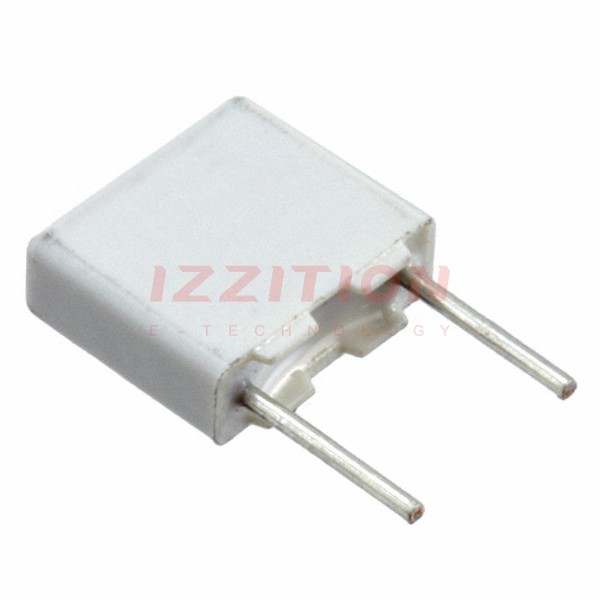

| Part Number | SMR5102K100J01L4BULK | SMR5103K100J01L4BULK | SMR5182K100J01L4BULK |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 1000 pF | 10000 pF | 1800 pF |
| Tolerance | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 63V | 63V | 63V |
| Voltage Rating - DC | 100V | 100V | 100V |
| Dielectric Material | Polyphenylene Sulfide (PPS), Metallized | Polyphenylene Sulfide (PPS), Metallized | Polyphenylene Sulfide (PPS), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.283" L x 0.098" W (7.20mm x 2.50mm) |
| Height - Seated (Max) | 0.256" (6.50mm) | 0.256" (6.50mm) | 0.256" (6.50mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | High Temperature | High Temperature | High Temperature |
