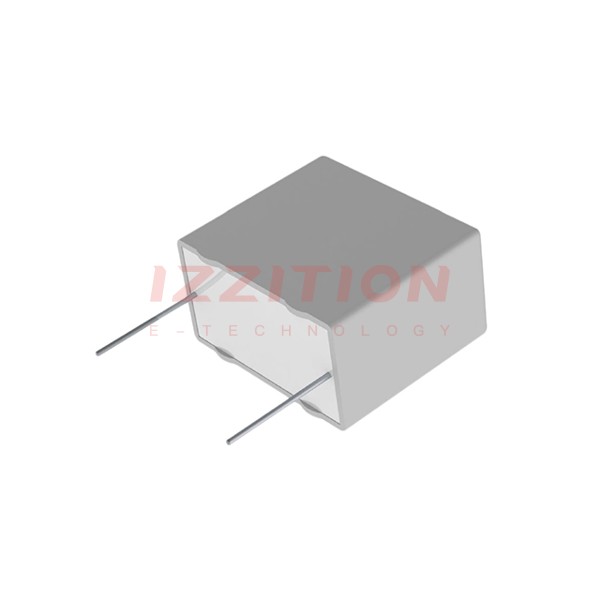

| Part Number | SMR27.5226J50F13L4TRAY | SMR27.5226K50F13L4TRAY | SMR27.5226M50F13L4TRAY | SMR27.5226H50F13L4TRAY |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 22 µF | 22 µF | 22 µF | 22 µF |
| Tolerance | ±5% | ±10% | ±20% | ±2.5% |
| Voltage Rating - AC | 30V | 30V | 30V | 30V |
| Voltage Rating - DC | 50V | 50V | 50V | 50V |
| Dielectric Material | Polyphenylene Sulfide (PPS), Metallized | Polyphenylene Sulfide (PPS), Metallized | Polyphenylene Sulfide (PPS), Metallized | Polyphenylene Sulfide (PPS), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.240" L x 0.571" W (31.50mm x 14.50mm) | 1.240" L x 0.571" W (31.50mm x 14.50mm) | 1.240" L x 0.571" W (31.50mm x 14.50mm) | 1.240" L x 0.571" W (31.50mm x 14.50mm) |
| Height - Seated (Max) | 0.965" (24.50mm) | 0.965" (24.50mm) | 0.965" (24.50mm) | 0.965" (24.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - |
| Features | High Temperature | High Temperature | High Temperature | High Temperature |
