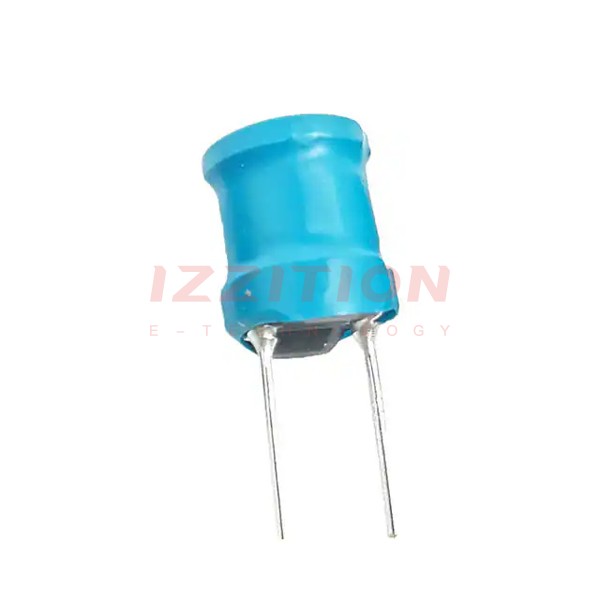

| Part Number | SBCP-87HY100H | SBCP-87HY102H | SBCP-87HY101H | SBCP-87HY150H | SBCP-87HY1R0H | SBCP-80HY100H |
|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 1 mH | 100 µH | 15 µH | 1 µH | 10 µH |
| Tolerance | ±20% | ±10% | ±10% | ±20% | ±30% | ±20% |
| Current Rating (Amps) | 2.3 A | 250 mA | 900 mA | 2.1 A | 4.5 A | 2.9 A |
| Current - Saturation (Isat) | 2.4A | 270mA | 870mA | 2.2A | 10.2A | 5.3A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 50mOhm Max | 2.82Ohm Max | 300mOhm Max | 60mOhm Max | 20mOhm Max | 50mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -20°C ~ 105°C | -20°C ~ 105°C | -20°C ~ 105°C | -20°C ~ 105°C | -20°C ~ 105°C | -20°C ~ 105°C |
| Inductance Frequency - Test | 10 kHz | 10 kHz | 10 kHz | 10 kHz | 10 kHz | 10 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.374" Dia (9.50mm) | 0.374" Dia (9.50mm) | 0.374" Dia (9.50mm) | 0.374" Dia (9.50mm) | 0.374" Dia (9.50mm) | 0.374" Dia (9.50mm) |
| Height - Seated (Max) | 0.335" (8.50mm) | 0.335" (8.50mm) | 0.335" (8.50mm) | 0.335" (8.50mm) | 0.335" (8.50mm) | 0.433" (11.00mm) |
