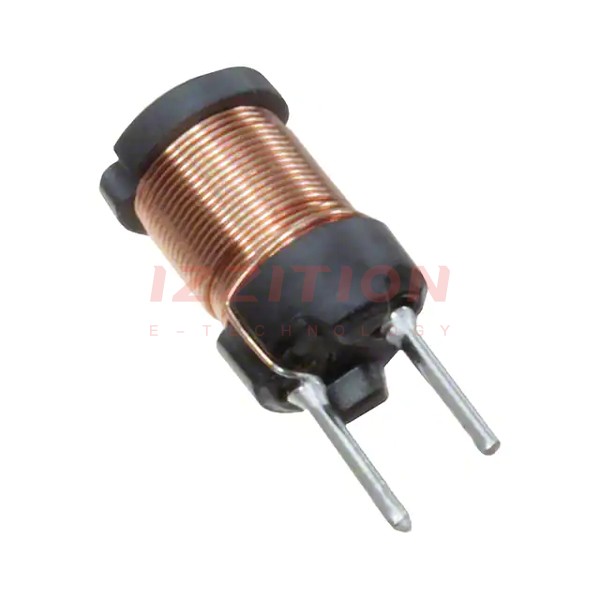

| Part Number | SBCP-47HY680B | SBCP-47HY681B |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 68 µH | 680 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 600 mA | 190 mA |
| Current - Saturation (Isat) | 600mA | 190mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 397mOhm Max | 3.5Ohm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -20°C ~ 105°C | -20°C ~ 105°C |
| Inductance Frequency - Test | 10 kHz | 10 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - | - |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.335" (8.50mm) | 0.335" (8.50mm) |
