Please send RFQ , we will respond immediately.

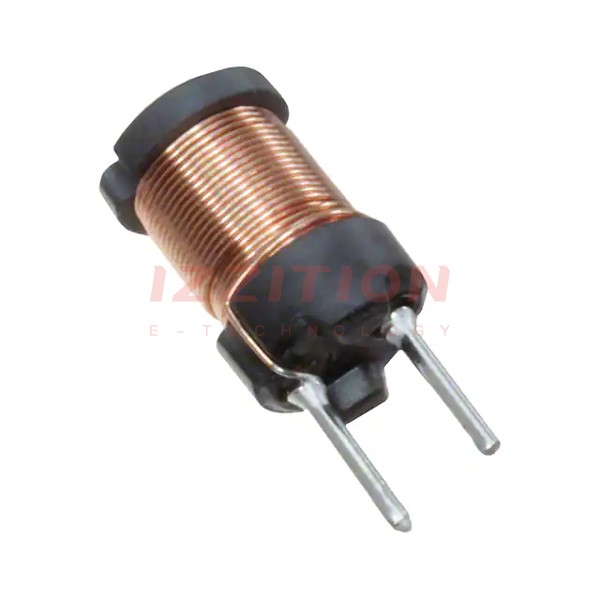

| Part Number | SBCP-47HY4R7B | SBCP-47HY2R7B |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 4.7 µH | 2.7 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 2.1 A | 2.45 A |
| Current - Saturation (Isat) | 2.3A | 2.92A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 43mOhm Max | 32mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -20°C ~ 105°C | -20°C ~ 105°C |
| Inductance Frequency - Test | 10 kHz | 10 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - | - |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.335" (8.50mm) | 0.335" (8.50mm) |
