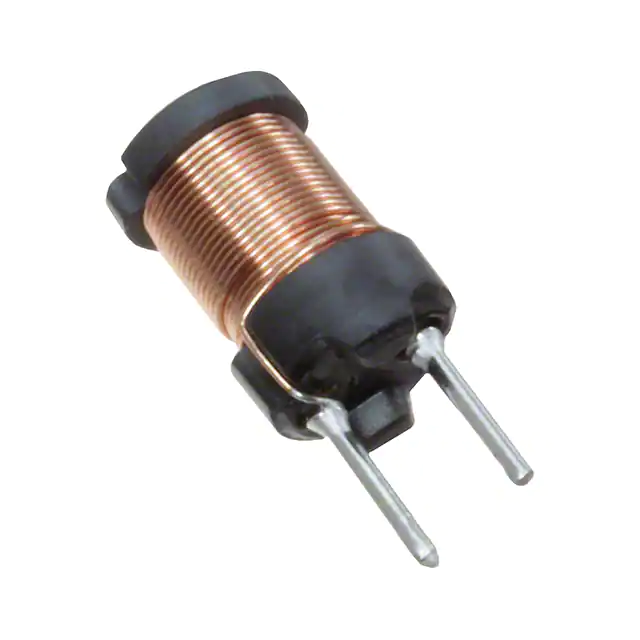

| Part Number | SBCP-47HY1R2B | SBCP-47HY2R2B | SBCP-47HY1R5B | SBCP-47HY8R2B | SBCP-47HY102B | SBCP-47HY152B |
|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1.2 µH | 2.2 µH | 1.5 µH | 8.2 µH | 1 mH | 1.5 mH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±10% | ±10% |
| Current Rating (Amps) | 3 A | 2.6 A | 2.85 A | 1.7 A | 150 mA | 130 mA |
| Current - Saturation (Isat) | 4.16A | 3.2A | 3.67A | 1.74A | 160mA | 130mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 21mOhm Max | 29mOhm Max | 24mOhm Max | 59mOhm Max | 6Ohm Max | 8Ohm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -20°C ~ 105°C | -20°C ~ 105°C | -20°C ~ 105°C | -20°C ~ 105°C | -20°C ~ 105°C | -20°C ~ 105°C |
| Inductance Frequency - Test | 10 kHz | 10 kHz | 10 kHz | 10 kHz | 10 kHz | 10 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.335" (8.50mm) | 0.295" (7.50mm) | 0.335" (8.50mm) | 0.335" (8.50mm) | 0.295" (7.50mm) | 0.335" (8.50mm) |
