Please send RFQ , we will respond immediately.

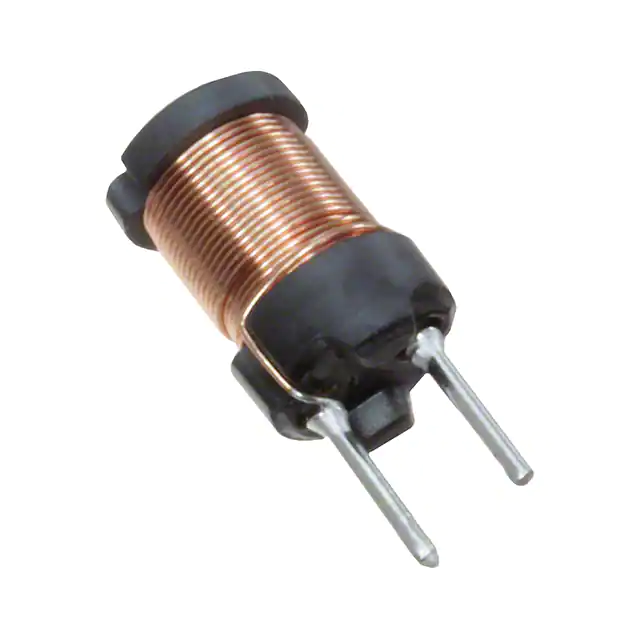

| Part Number | SBCP-14HY681B | SBCP-14HY682B | SBCP-14HY680B |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 680 µH | 6.8 mH | 68 µH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 670 mA | 220 mA | 1.7 A |
| Current - Saturation (Isat) | 1.24A | 380mA | 3.76A |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 900mOhm Max | 7.17Ohm Max | 110mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -20°C ~ 105°C | -20°C ~ 105°C | -20°C ~ 105°C |
| Inductance Frequency - Test | 10 kHz | 10 kHz | 10 kHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.472" Dia (12.00mm) | 0.472" Dia (12.00mm) | 0.472" Dia (12.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) |
