Please send RFQ , we will respond immediately.

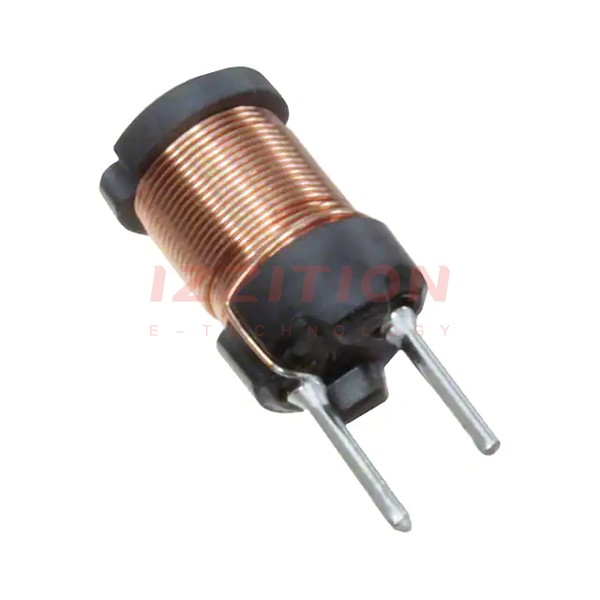

| Part Number | SBCP-14HY100B | SBCP-14HY102B | SBCP-14HY103B | SBCP-14HY101B | SBCP-14HY150B |
|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 1 mH | 10 mH | 100 µH | 15 µH |
| Tolerance | ±20% | ±10% | ±10% | ±10% | ±20% |
| Current Rating (Amps) | 3 A | 590 mA | 170 mA | 1.5 A | 2.8 A |
| Current - Saturation (Isat) | 10.3A | 1.01A | 310mA | 3.1A | 8.07A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 40mOhm Max | 1.16Ohm Max | 10.86Ohm Max | 140mOhm Max | 50mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -20°C ~ 105°C | -20°C ~ 105°C | -20°C ~ 105°C | -20°C ~ 105°C | -20°C ~ 105°C |
| Inductance Frequency - Test | 10 kHz | 10 kHz | 10 kHz | 10 kHz | 10 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.472" Dia (12.00mm) | 0.472" Dia (12.00mm) | 0.472" Dia (12.00mm) | 0.472" Dia (12.00mm) | 0.472" Dia (12.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) |
