KEMET-RSBPC1220Z300K - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	2200 pF
Tolerance:	±10%
Voltage Rating - AC:	220V
Voltage Rating - DC:	630V
Dielectric Material:	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.283" L x 0.138" W (7.20mm x 3.50mm)
Height - Seated (Max):	0.299" (7.60mm)
Termination:	PC Pins
Lead Spacing:	0.197" (5.00mm)
Applications:	Automotive
Ratings:	AEC-Q200
Features:	High Temperature

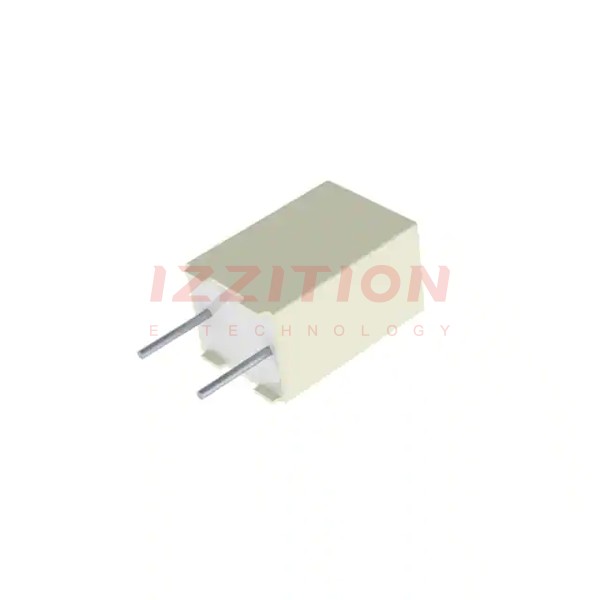

KEMET RSBPC1220Z300K
