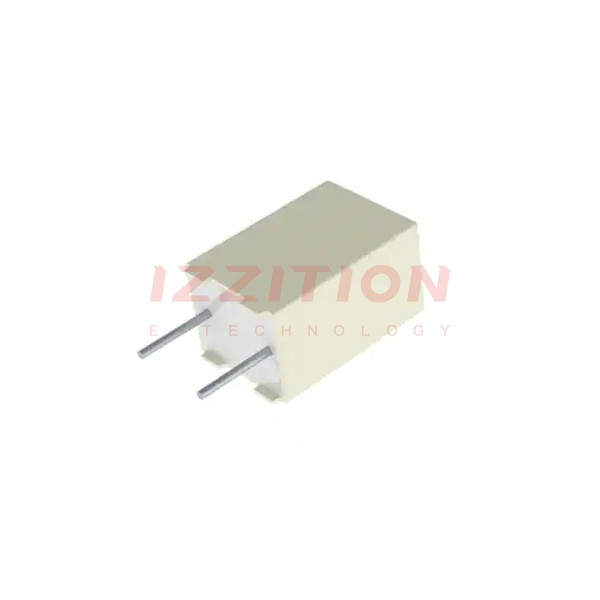

KEMET-RSBEC2470Z300K - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	0.047 µF
Tolerance:	±10%
Voltage Rating - AC:	63V
Voltage Rating - DC:	100V
Dielectric Material:	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.283" L x 0.098" W (7.20mm x 2.50mm)
Height - Seated (Max):	0.260" (6.60mm)
Termination:	PC Pins
Lead Spacing:	0.197" (5.00mm)
Applications:	Automotive
Ratings:	AEC-Q200
Features:	High Temperature

KEMET RSBEC2470Z300K
