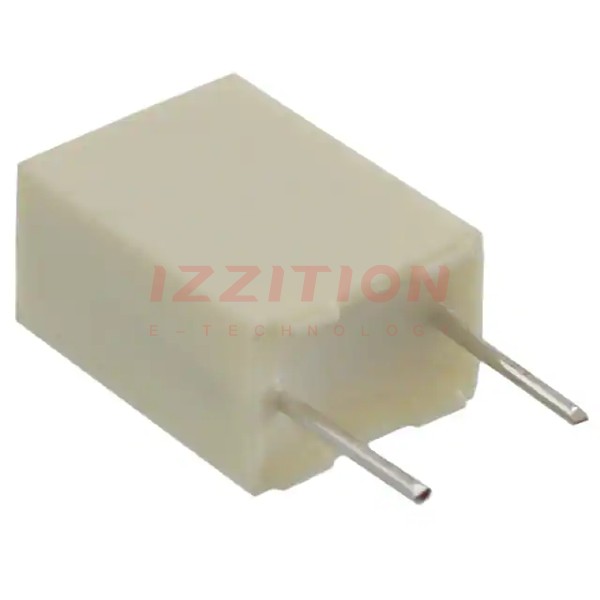

| Part Number | R82IC2150Z350J | R82IC2150Z350K | R82EC2150Z350J |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 0.015 µF | 0.015 µF | 0.015 µF |
| Tolerance | ±5% | ±10% | ±5% |
| Voltage Rating - AC | 160V | 160V | 63V |
| Voltage Rating - DC | 250V | 250V | 100V |
| Dielectric Material | Polyester, Metallized | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.283" L x 0.098" W (7.20mm x 2.50mm) |
| Height - Seated (Max) | 0.260" (6.60mm) | 0.264" (6.70mm) | 0.260" (6.60mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | Automotive | Automotive | Automotive |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | - | - | - |
