KEMET-R82EC3330DQ70J - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	0.33 µF
Tolerance:	±5%
Voltage Rating - AC:	63V
Voltage Rating - DC:	100V
Dielectric Material:	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.283" L x 0.177" W (7.20mm x 4.50mm)
Height - Seated (Max):	0.378" (9.60mm)
Termination:	PC Pins
Lead Spacing:	0.197" (5.00mm)
Applications:	Automotive
Ratings:	AEC-Q200
Features:	-

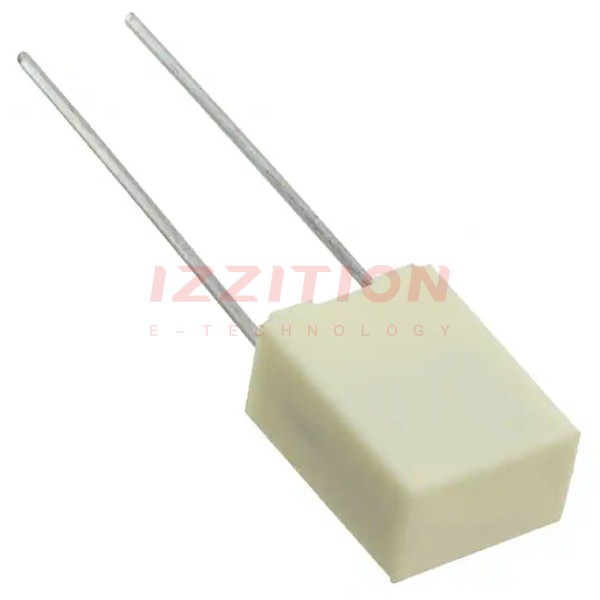

KEMET R82EC3330DQ70J
