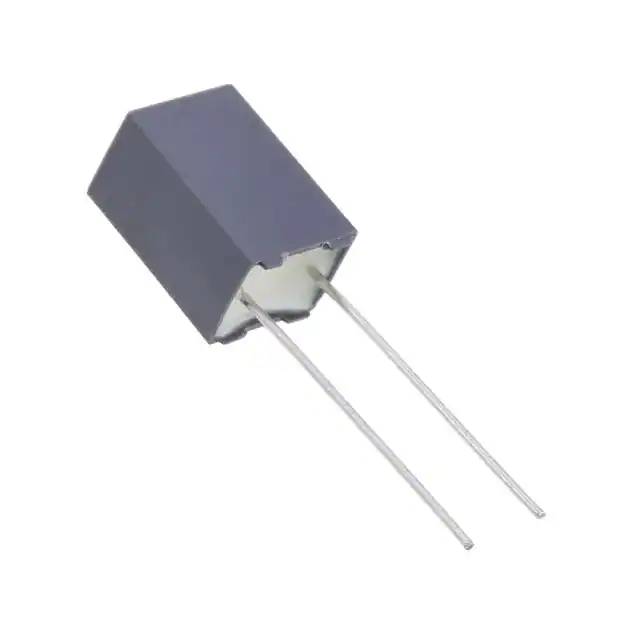

| Part Number | R79PC2100Z340J | R79MC2100Z340J | R79PC1100Z340J |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 10000 pF | 10000 pF | 1000 pF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 220V | 200V | 220V |
| Voltage Rating - DC | 630V | 400V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.283" L x 0.138" W (7.20mm x 3.50mm) |
| Height - Seated (Max) | 0.437" (11.10mm) | 0.299" (7.60mm) | 0.299" (7.60mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - |
| Features | - | - | - |
