Please send RFQ , we will respond immediately.

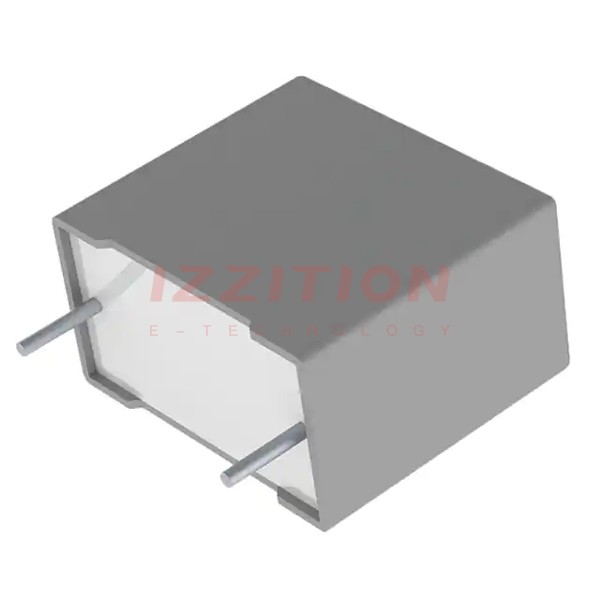

| Part Number | R76UI122050H4J | R76UI182050H4J | R76UI127050H4J |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 2200 pF | 8200 pF | 2700 pF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 700V | 700V | 700V |
| Voltage Rating - DC | 2000V (2kV) | 2000V (2kV) | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 289 mOhms | 233 mOhms | 707 mOhms |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.709" L x 0.157" W (18.00mm x 4.00mm) |
| Height - Seated (Max) | 0.398" (10.10mm) | 0.476" (12.10mm) | 0.398" (10.10mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | - | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | Automotive; High Frequency, Switching; High Pulse, DV/DT | Automotive; High Frequency, Switching; High Pulse, DV/DT | Automotive; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | - | - | - |
