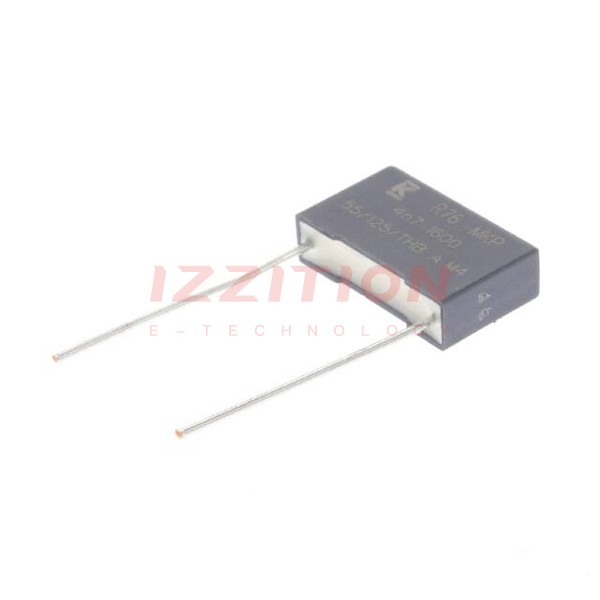

KEMET-R76TI147050H3J - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	4700 pF
Tolerance:	±5%
Voltage Rating - AC:	650V
Voltage Rating - DC:	1600V (1.6kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	135 mOhms
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.709" L x 0.197" W (18.00mm x 5.00mm)
Height - Seated (Max):	0.437" (11.10mm)
Termination:	PC Pins
Lead Spacing:	-
Applications:	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings:	AEC-Q200
Features:	-

KEMET R76TI147050H3J
