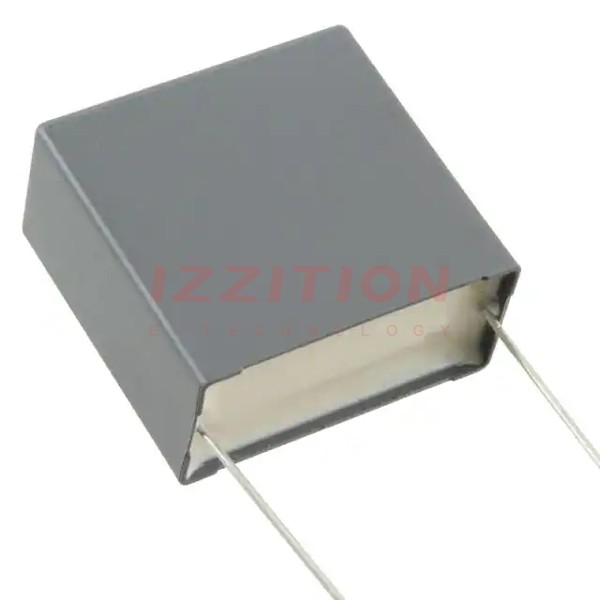

| Part Number | R75UW333050L3J | R75TW333050L3J |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 0.33 µF | 0.33 µF |
| Tolerance | ±5% | ±5% |
| Voltage Rating - AC | 700V | 650V |
| Voltage Rating - DC | 2000V (2kV) | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 8.2 mOhms | 8.2 mOhms |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.634" L x 0.945" W (41.50mm x 24.00mm) |
| Height - Seated (Max) | 0.752" (19.10mm) | 0.752" (19.10mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 1.476" (37.50mm) | 1.476" (37.50mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - | - |
| Features | - | - |
