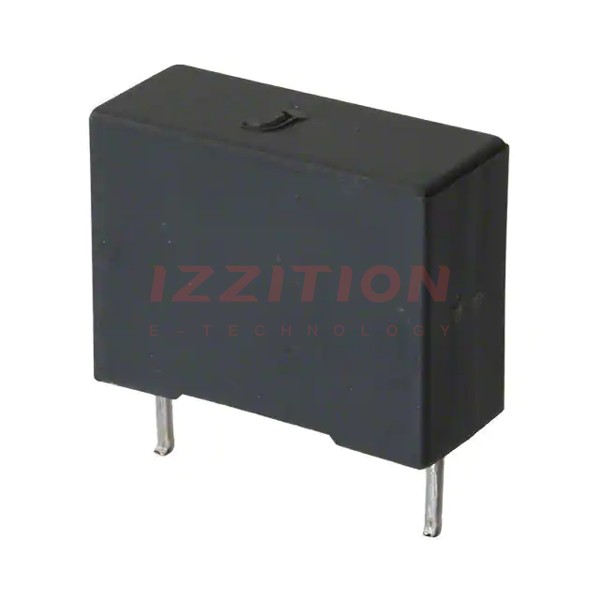

| Part Number | R75TI21504030J | R75TI21004030J |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 0.015 µF | 10000 pF |
| Tolerance | ±5% | ±5% |
| Voltage Rating - AC | 650V | 650V |
| Voltage Rating - DC | 1600V (1.6kV) | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.709" L x 0.236" W (18.00mm x 6.00mm) |
| Height - Seated (Max) | 0.535" (13.60mm) | 0.476" (12.10mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | Automotive; High Frequency, Switching; High Pulse, DV/DT | Automotive; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | AEC-Q200 | AEC-Q200 |
| Features | - | - |
