KEMET-R75QR368050H0J - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	0.68 µF
Tolerance:	±5%
Voltage Rating - AC:	250V
Voltage Rating - DC:	1000V (1kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	9.4 mOhms
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	1.260" L x 0.709" W (32.00mm x 18.00mm)
Height - Seated (Max):	1.303" (33.10mm)
Termination:	PC Pins
Lead Spacing:	1.083" (27.50mm)
Applications:	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings:	AEC-Q200
Features:	-

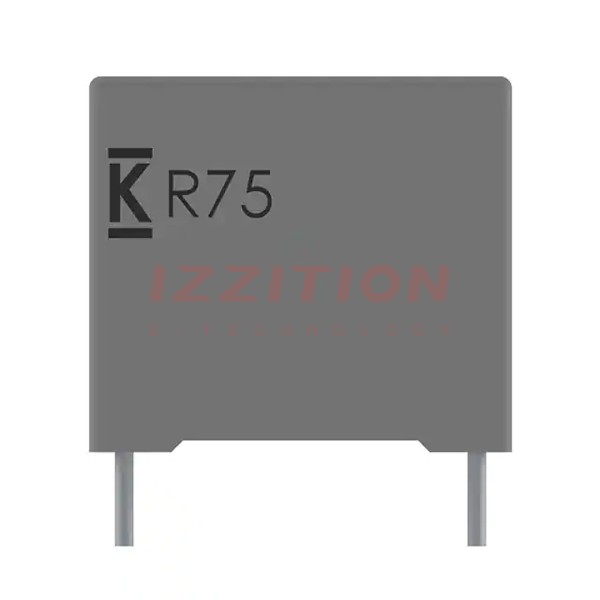

KEMET R75QR368050H0J
