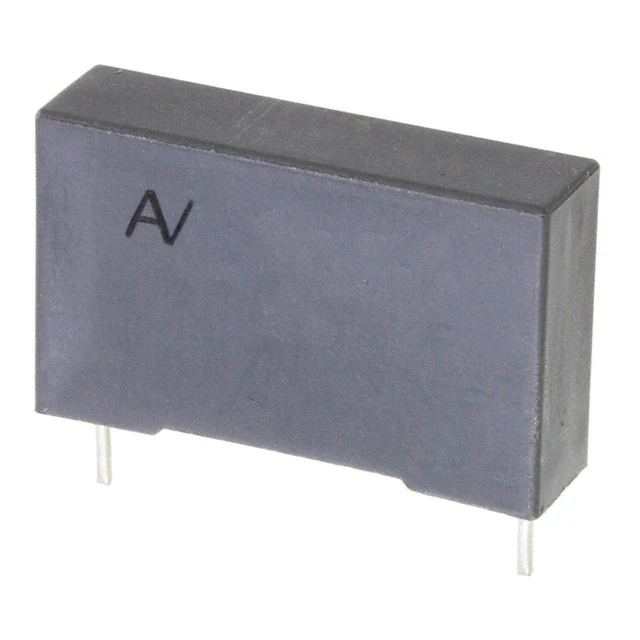

| Part Number | R75QN3100AA00K | R75QN3150AA00K |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 0.1 µF | 0.15 µF |
| Tolerance | ±10% | ±10% |
| Voltage Rating - AC | 250V | 250V |
| Voltage Rating - DC | 1000V (1kV) | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | 18 mOhms |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 1.043" L x 0.394" W (26.50mm x 10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) | 0.732" (18.60mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) |
| Applications | Automotive; High Frequency, Switching; High Pulse, DV/DT | Automotive; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | AEC-Q200 | AEC-Q200 |
| Features | - | - |
