KEMET-R75QI26804000J - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	0.068 µF
Tolerance:	±5%
Voltage Rating - AC:	250V
Voltage Rating - DC:	1000V (1kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.709" L x 0.335" W (18.00mm x 8.50mm)
Height - Seated (Max):	0.575" (14.60mm)
Termination:	PC Pins
Lead Spacing:	0.591" (15.00mm)
Applications:	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings:	AEC-Q200
Features:	-

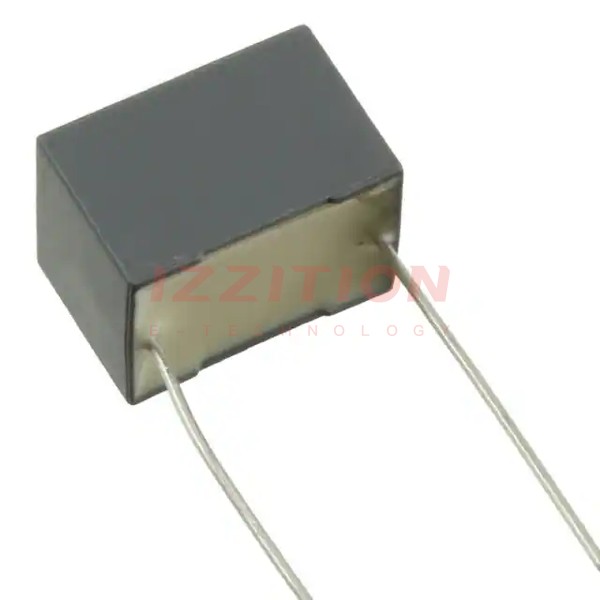

KEMET R75QI26804000J
