Please send RFQ , we will respond immediately.

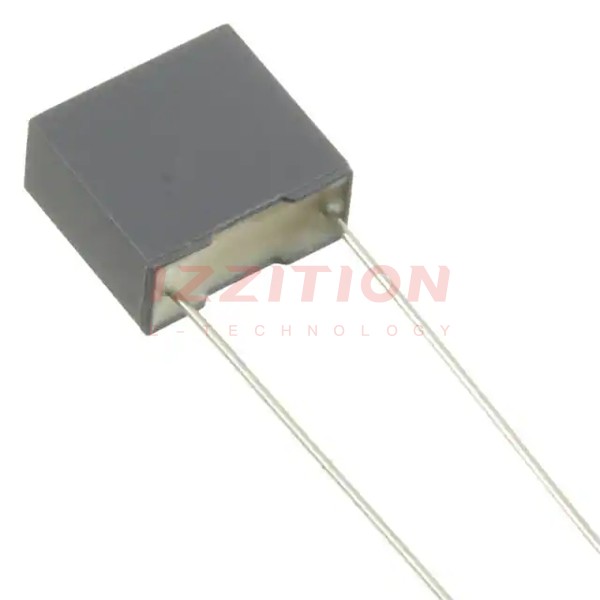

| Part Number | R75QD1470Z330J | R75QD0470Z330J |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 4700 pF | 470 pF |
| Tolerance | ±5% | ±5% |
| Voltage Rating - AC | 400V | 400V |
| Voltage Rating - DC | 1000V (1kV) | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.394" L x 0.118" W (10.00mm x 3.00mm) |
| Height - Seated (Max) | 0.417" (10.60mm) | 0.319" (8.10mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Applications | Automotive; High Frequency, Switching; High Pulse, DV/DT | Automotive; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | AEC-Q200 | AEC-Q200 |
| Features | - | - |
