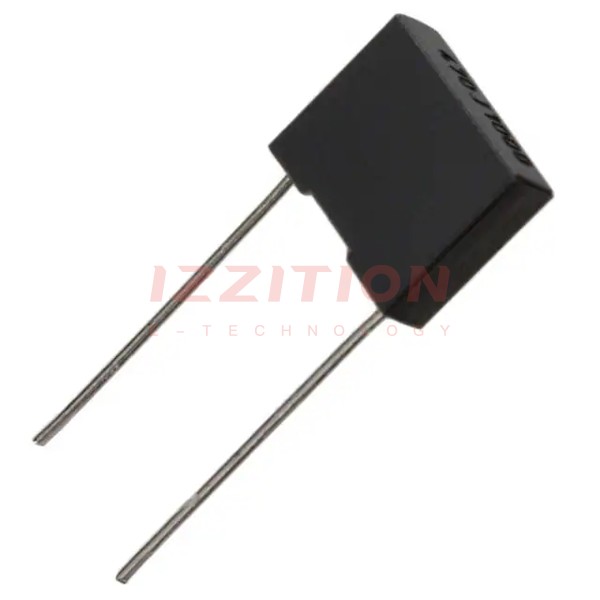

KEMET-R75QD0470DQ30J - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	470 pF
Tolerance:	±5%
Voltage Rating - AC:	400V
Voltage Rating - DC:	1000V (1kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.394" L x 0.118" W (10.00mm x 3.00mm)
Height - Seated (Max):	0.319" (8.10mm)
Termination:	PC Pins
Lead Spacing:	0.295" (7.50mm)
Applications:	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings:	AEC-Q200
Features:	-

KEMET R75QD0470DQ30J
