KEMET-R75PW439050H3J - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	3.9 µF
Tolerance:	±5%
Voltage Rating - AC:	250V
Voltage Rating - DC:	630V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	6.1 mOhms
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	1.634" L x 0.787" W (41.50mm x 20.00mm)
Height - Seated (Max):	1.579" (40.10mm)
Termination:	PC Pins
Lead Spacing:	1.476" (37.50mm)
Applications:	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings:	AEC-Q200
Features:	-

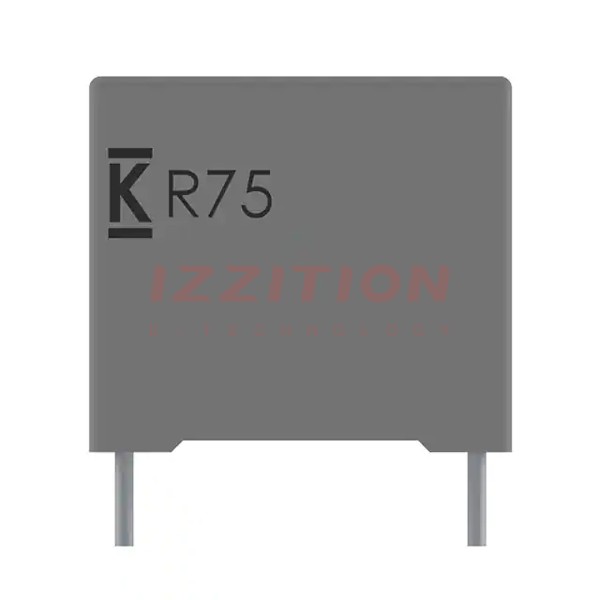

KEMET R75PW439050H3J
