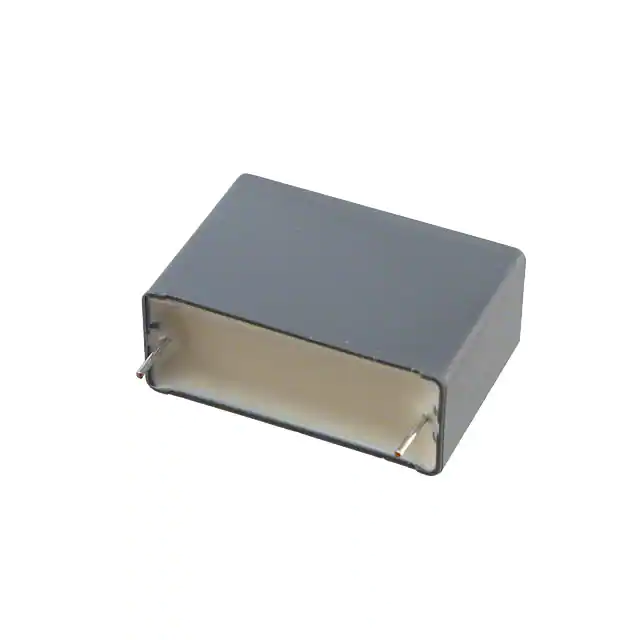

| Part Number | R75PR4100AA30K | R75PR4150AA30K | R75PR4100AA30J |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 1 µF | 1.5 µF | 1 µF |
| Tolerance | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 250V | 250V | 250V |
| Voltage Rating - DC | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | 8 mOhms |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.260" L x 0.512" W (32.00mm x 13.00mm) |
| Height - Seated (Max) | 0.870" (22.10mm) | 1.106" (28.10mm) | 0.870" (22.10mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT | High Frequency, Switching; High Pulse, DV/DT | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - | - | - |
| Features | - | - | - |
