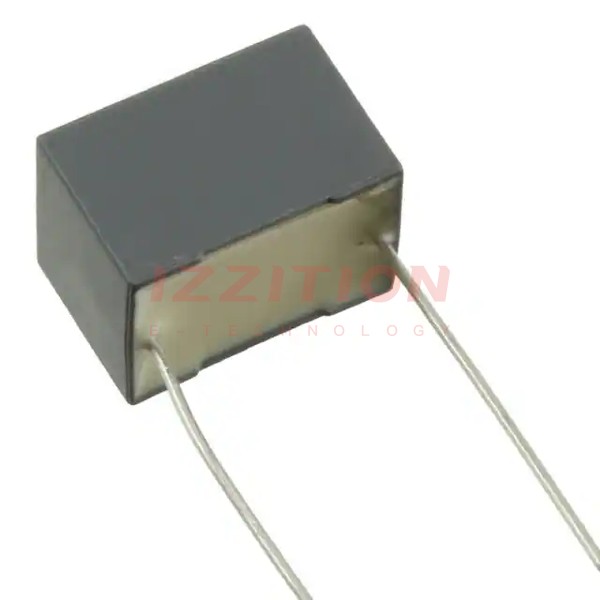

| Part Number | R75PI31504030J | R75PI31504030K | R75PI31004030J |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 0.15 µF | 0.15 µF | 0.1 µF |
| Tolerance | ±5% | ±10% | ±5% |
| Voltage Rating - AC | 250V | 250V | 250V |
| Voltage Rating - DC | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.709" L x 0.295" W (18.00mm x 7.50mm) |
| Height - Seated (Max) | 0.575" (14.60mm) | 0.575" (14.60mm) | 0.535" (13.60mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | Automotive; High Frequency, Switching; High Pulse, DV/DT | Automotive; High Frequency, Switching; High Pulse, DV/DT | Automotive; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | - | - | - |
