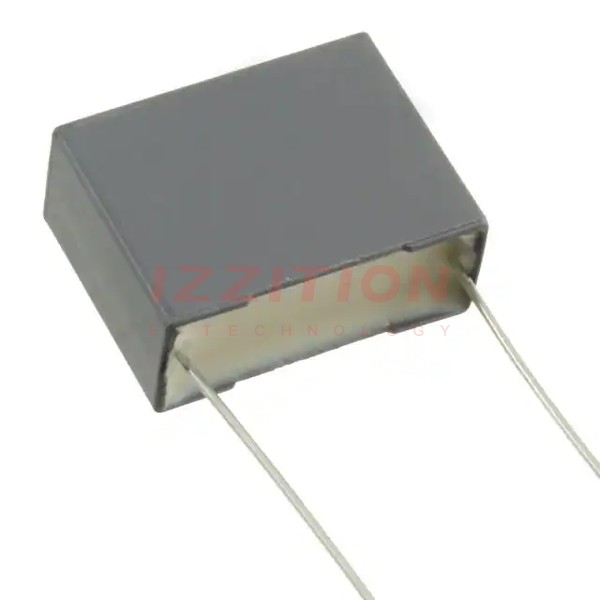

| Part Number | R75MN41504030J | R75MR41504030J | R75MN41004030J |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 1.5 µF | 1.5 µF | 1 µF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 220V | 220V | 220V |
| Voltage Rating - DC | 400V | 400V | 400V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 1.043" L x 0.433" W (26.50mm x 11.00mm) |
| Height - Seated (Max) | 0.870" (22.10mm) | 0.870" (22.10mm) | 0.791" (20.10mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 1.083" (27.50mm) | 0.886" (22.50mm) |
| Applications | Automotive; High Frequency, Switching; High Pulse, DV/DT | High Frequency, Switching; High Pulse, DV/DT | Automotive; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | AEC-Q200 | - | AEC-Q200 |
| Features | - | - | - |
