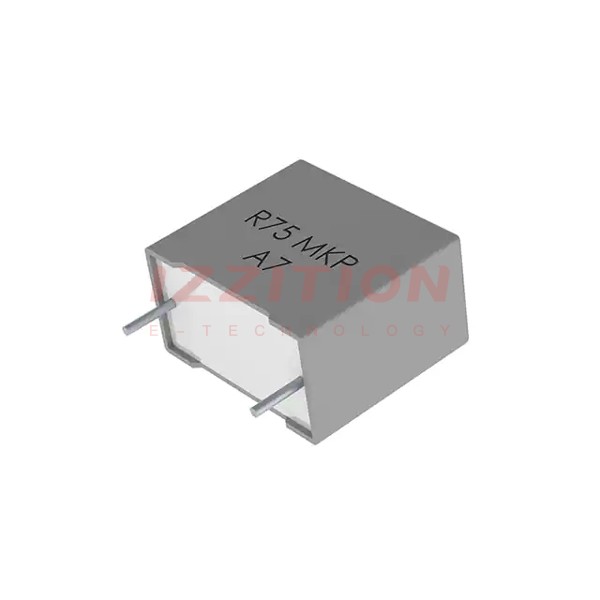

KEMET-R75MN4100AA30K - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	1 µF
Tolerance:	±10%
Voltage Rating - AC:	220V
Voltage Rating - DC:	400V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	8 mOhms
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	1.043" L x 0.433" W (26.50mm x 11.00mm)
Height - Seated (Max):	0.791" (20.10mm)
Termination:	PC Pins
Lead Spacing:	0.886" (22.50mm)
Applications:	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings:	AEC-Q200
Features:	-

KEMET R75MN4100AA30K
