KEMET-R75MN33904030J - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	0.39 µF
Tolerance:	±5%
Voltage Rating - AC:	220V
Voltage Rating - DC:	400V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	1.043" L x 0.276" W (26.50mm x 7.00mm)
Height - Seated (Max):	0.634" (16.10mm)
Termination:	PC Pins
Lead Spacing:	0.886" (22.50mm)
Applications:	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings:	AEC-Q200
Features:	-

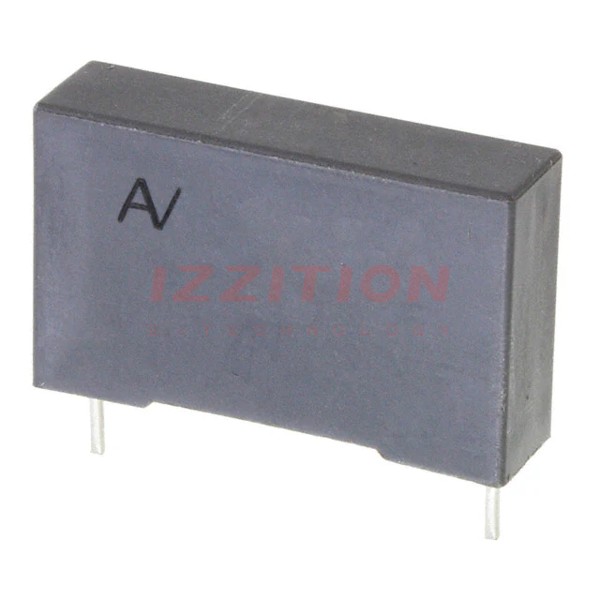

KEMET R75MN33904030J
