KEMET-R75MI3220AA30K - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	0.22 µF
Tolerance:	±10%
Voltage Rating - AC:	220V
Voltage Rating - DC:	400V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	11 mOhms
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.709" L x 0.295" W (18.00mm x 7.50mm)
Height - Seated (Max):	0.535" (13.60mm)
Termination:	PC Pins
Lead Spacing:	0.591" (15.00mm)
Applications:	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings:	AEC-Q200
Features:	-

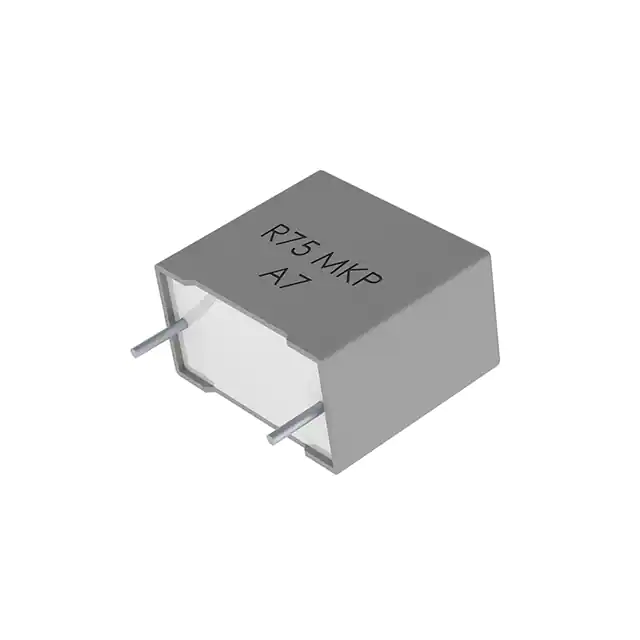

KEMET R75MI3220AA30K
