KEMET-R75MD2470Z3B0J - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	0.047 µF
Tolerance:	±5%
Voltage Rating - AC:	200V
Voltage Rating - DC:	400V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	23.7 mOhms
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.394" L x 0.197" W (10.00mm x 5.00mm)
Height - Seated (Max):	0.417" (10.60mm)
Termination:	PC Pins
Lead Spacing:	0.295" (7.50mm)
Applications:	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings:	AEC-Q200
Features:	-

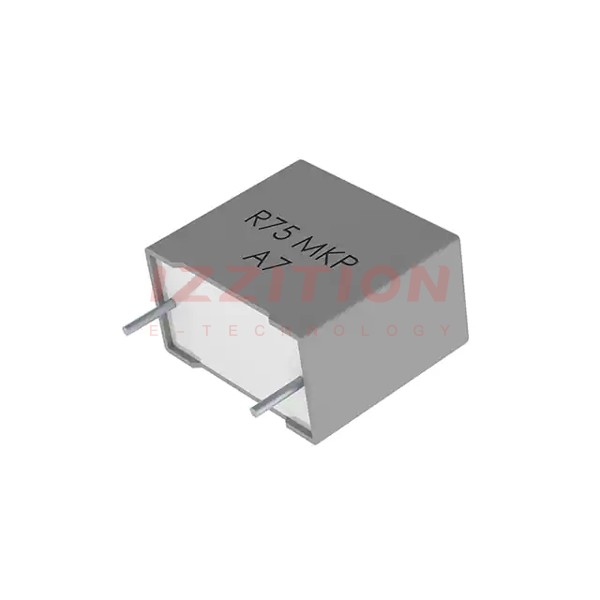

KEMET R75MD2470Z3B0J
