KEMET-R75LR42704000K - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	2.7 µF
Tolerance:	±10%
Voltage Rating - AC:	250V
Voltage Rating - DC:	560V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	1.260" L x 0.709" W (32.00mm x 18.00mm)
Height - Seated (Max):	1.303" (33.10mm)
Termination:	PC Pins
Lead Spacing:	1.083" (27.50mm)
Applications:	DC Link, DC Filtering
Ratings:	-
Features:	-

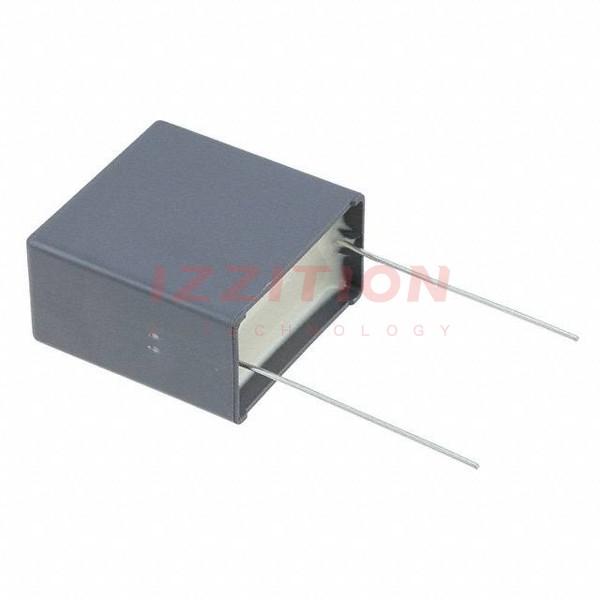

KEMET R75LR42704000K
