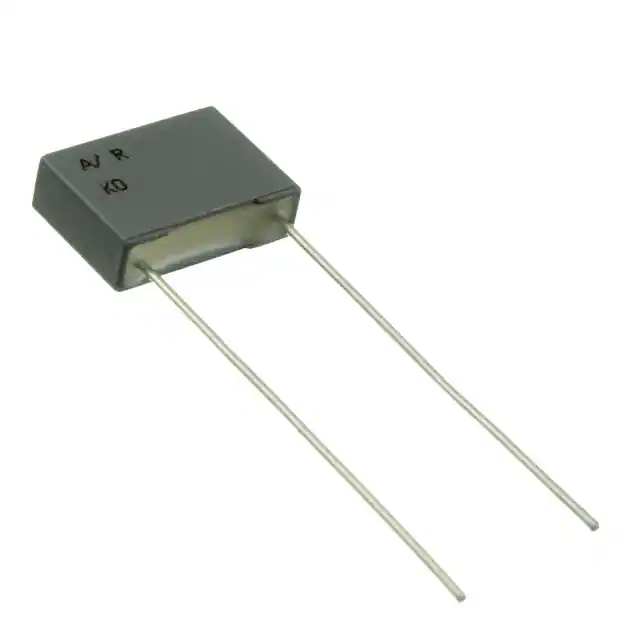

KEMET-R75IF23304000J - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	0.033 µF
Tolerance:	±5%
Voltage Rating - AC:	160V
Voltage Rating - DC:	250V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.512" L x 0.157" W (13.00mm x 4.00mm)
Height - Seated (Max):	0.358" (9.10mm)
Termination:	PC Pins
Lead Spacing:	0.394" (10.00mm)
Applications:	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings:	AEC-Q200
Features:	-

KEMET R75IF23304000J
