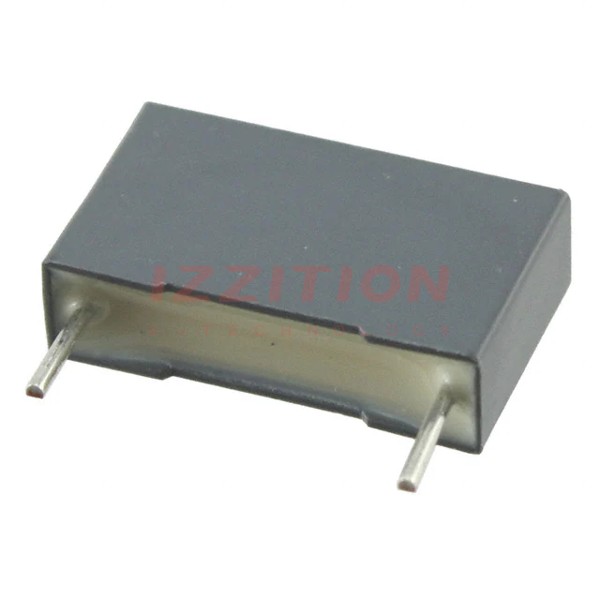

| Part Number | R73UI0100SE03K | R73UI0100SE03J |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 100 pF | 100 pF |
| Tolerance | ±10% | ±5% |
| Voltage Rating - AC | 500V | 500V |
| Voltage Rating - DC | 2000V (2kV) | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.709" L x 0.197" W (18.00mm x 5.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) | 0.433" (11.00mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | AEC-Q200 | AEC-Q200 |
| Features | - | - |
