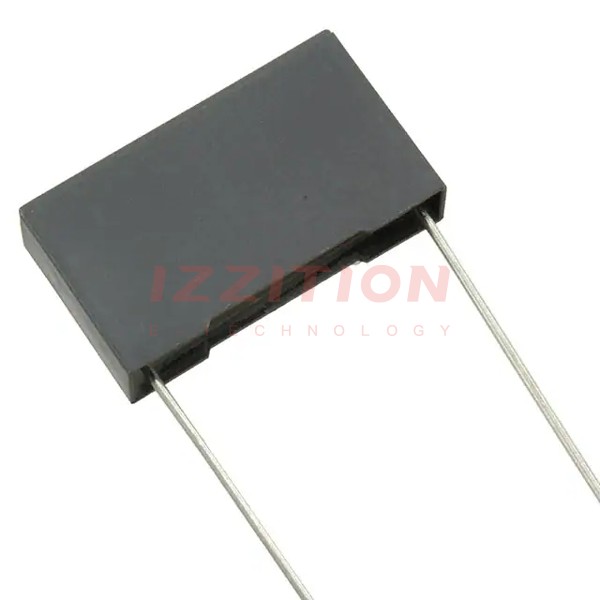

KEMET-R73QI16804030J - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	6800 pF
Tolerance:	±5%
Voltage Rating - AC:	400V
Voltage Rating - DC:	1000V (1kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.709" L x 0.197" W (18.00mm x 5.00mm)
Height - Seated (Max):	0.437" (11.10mm)
Termination:	PC Pins
Lead Spacing:	0.591" (15.00mm)
Applications:	Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT
Ratings:	AEC-Q200
Features:	-

KEMET R73QI16804030J
