KEMET-R71XI422050H0K - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	2.2 µF
Tolerance:	±10%
Voltage Rating - AC:	160V
Voltage Rating - DC:	450V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	18 mOhms
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.709" L x 0.433" W (18.00mm x 11.00mm)
Height - Seated (Max):	0.752" (19.10mm)
Termination:	PC Pins
Lead Spacing:	0.591" (15.00mm)
Applications:	High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC)
Ratings:	AEC-Q200
Features:	-

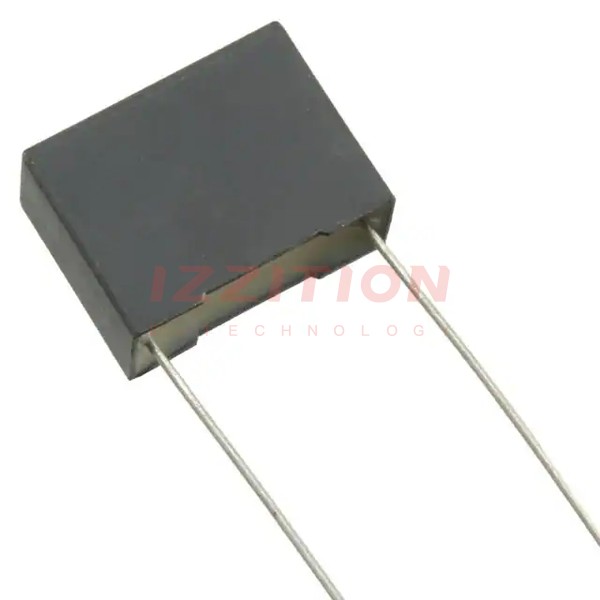

KEMET R71XI422050H0K
