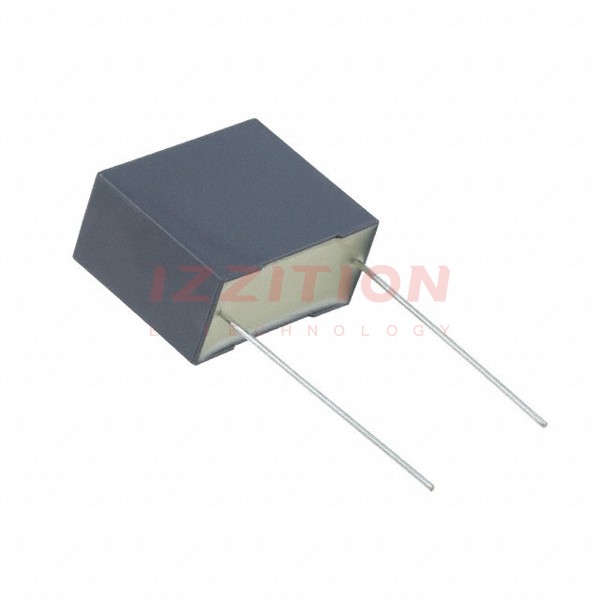

| Part Number | R71VN42204030K | R71MN42204030K |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 2.2 µF | 2.2 µF |
| Tolerance | ±10% | ±10% |
| Voltage Rating - AC | 250V | 220V |
| Voltage Rating - DC | 520V | 420V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 1.043" L x 0.433" W (26.50mm x 11.00mm) |
| Height - Seated (Max) | 0.870" (22.10mm) | 0.791" (20.10mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) |
| Ratings | - | - |
| Features | - | - |
