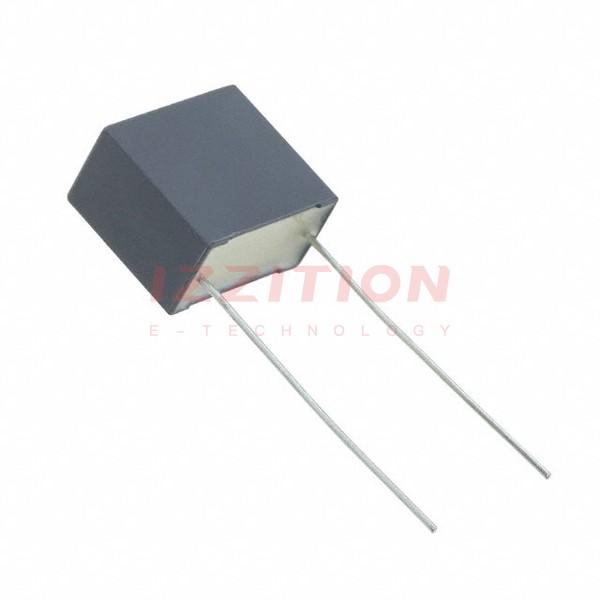

| Part Number | R71VI36804030K | R71MI36804030K |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 0.68 µF | 0.68 µF |
| Tolerance | ±10% | ±10% |
| Voltage Rating - AC | 250V | 220V |
| Voltage Rating - DC | 520V | 420V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.709" L x 0.335" W (18.00mm x 8.50mm) |
| Height - Seated (Max) | 0.634" (16.10mm) | 0.575" (14.60mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) |
| Ratings | - | - |
| Features | - | - |
