KEMET-R71VF322050H6K - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	0.22 µF
Tolerance:	±10%
Voltage Rating - AC:	200V
Voltage Rating - DC:	520V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	90 mOhms
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.512" L x 0.236" W (13.00mm x 6.00mm)
Height - Seated (Max):	0.476" (12.10mm)
Termination:	PC Pins
Lead Spacing:	0.394" (10.00mm)
Applications:	High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC)
Ratings:	AEC-Q200
Features:	-

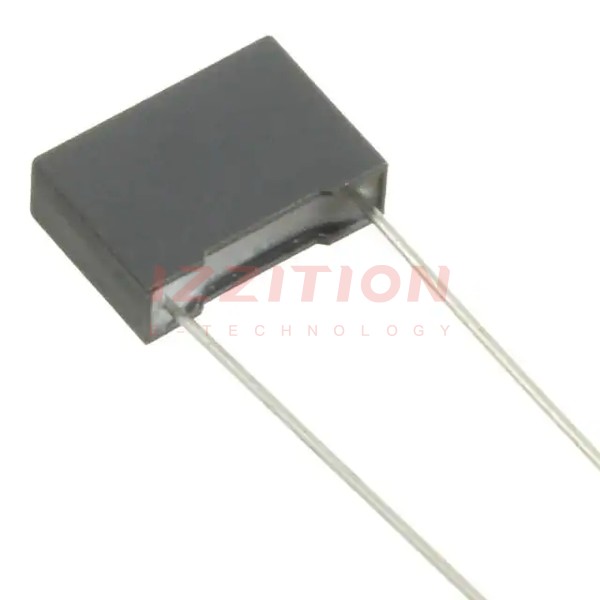

KEMET R71VF322050H6K
