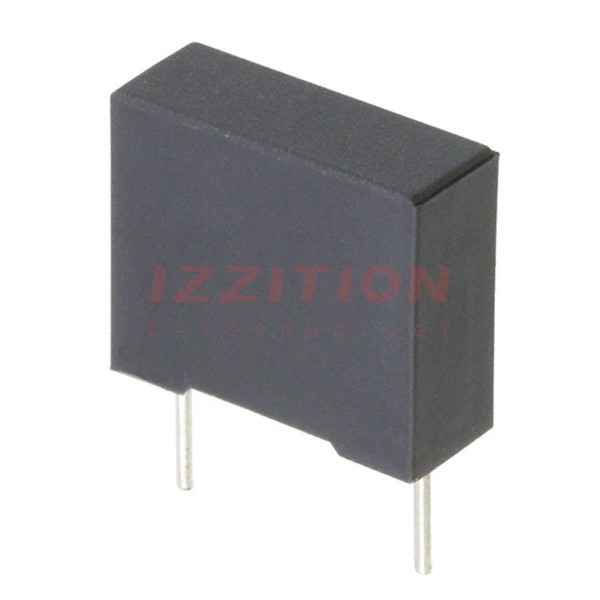

KEMET-R71VF3100AA30K - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	0.1 µF
Tolerance:	±10%
Voltage Rating - AC:	250V
Voltage Rating - DC:	520V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-40°C ~ 110°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.512" L x 0.197" W (13.00mm x 5.00mm)
Height - Seated (Max):	0.433" (11.00mm)
Termination:	PC Pins
Lead Spacing:	0.394" (10.00mm)
Applications:	High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC)
Ratings:	-
Features:	-

KEMET R71VF3100AA30K
