Please send RFQ , we will respond immediately.

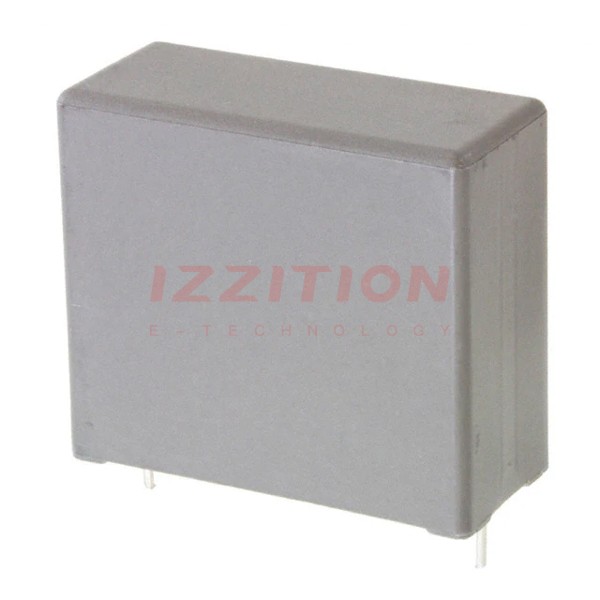

| Part Number | R71QW4220AA00J | R71QW4220AA10J | R71QW4220AA20J |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Obsolete | Active | Active |
| Capacitance | 2.2 µF | 2.2 µF | 2.2 µF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 275V | 275V | 275V |
| Voltage Rating - DC | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.634" L x 0.787" W (41.50mm x 20.00mm) |
| Height - Seated (Max) | 1.264" (32.10mm) | 1.126" (28.60mm) | 1.579" (40.10mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.476" (37.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) |
| Ratings | - | - | - |
| Features | - | - | - |
