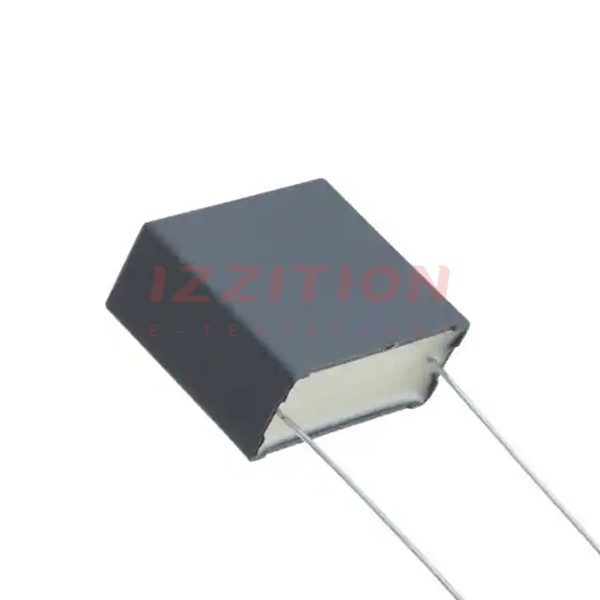

| Part Number | R71PR447050H6K | R71VR447050H6K |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 4.7 µF | 4.7 µF |
| Tolerance | ±10% | ±10% |
| Voltage Rating - AC | 220V | 200V |
| Voltage Rating - DC | 630V | 520V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 14 mOhms | 14 mOhms |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 1.260" L x 0.512" W (32.00mm x 13.00mm) |
| Height - Seated (Max) | 0.988" (25.10mm) | 0.870" (22.10mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) |
| Applications | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) |
| Ratings | AEC-Q200 | AEC-Q200 |
| Features | - | - |
