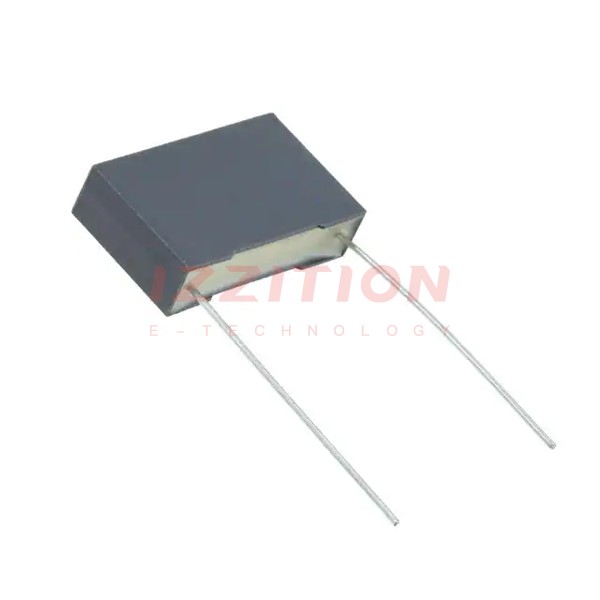

| Part Number | R71PF26804030K | R71VF26804030K |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 0.068 µF | 0.068 µF |
| Tolerance | ±10% | ±10% |
| Voltage Rating - AC | 275V | 250V |
| Voltage Rating - DC | 630V | 520V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.512" L x 0.157" W (13.00mm x 4.00mm) |
| Height - Seated (Max) | 0.476" (12.10mm) | 0.358" (9.10mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) |
| Ratings | - | - |
| Features | - | - |
