Please send RFQ , we will respond immediately.

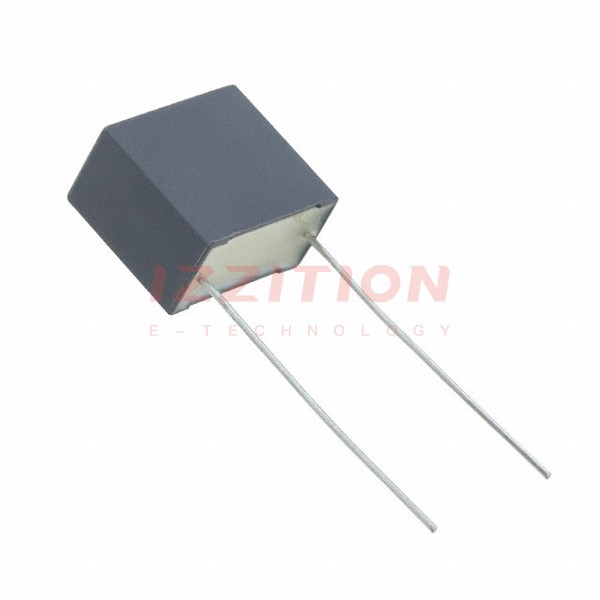

| Part Number | R71MI41004030K | R71MI41504030K |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 1 µF | 1.5 µF |
| Tolerance | ±10% | ±10% |
| Voltage Rating - AC | 220V | 220V |
| Voltage Rating - DC | 420V | 420V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.709" L x 0.433" W (18.00mm x 11.00mm) |
| Height - Seated (Max) | 0.634" (16.10mm) | 0.752" (19.10mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) |
| Ratings | - | - |
| Features | - | - |
