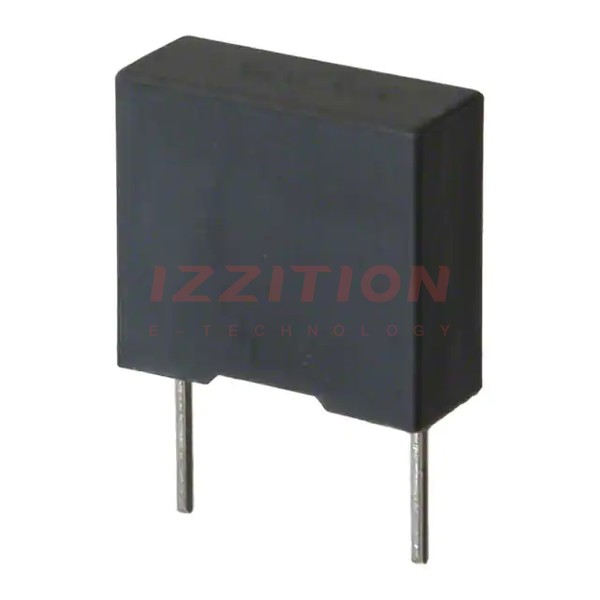

KEMET-R66MD3150Z36AK - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	0.15 µF
Tolerance:	±10%
Voltage Rating - AC:	200V
Voltage Rating - DC:	400V
Dielectric Material:	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.413" L x 0.236" W (10.50mm x 6.00mm)
Height - Seated (Max):	0.476" (12.10mm)
Termination:	PC Pins
Lead Spacing:	0.295" (7.50mm)
Applications:	Automotive
Ratings:	AEC-Q200
Features:	-

KEMET R66MD3150Z36AK
